Long Life Diamond Saw Blade to Cut Granite slab and edge cutting, 250mm to 800mm

Model Number : 350mm

Certification : ISO9001: 2008, SGS

Place of Origin : china

MOQ : 10PCS

Payment Terms : Western Union, T/T, L/C

Supply Ability : 5000PCS/Month

Delivery Time : 10-15 days as per the order quantity

Packaging Details : carton package/ polywood package

Blade type : Circular Saw Blade

Type : SAW BLADE

Application : Granite

Product name : Diamond Saw Blade

Blade material : ALLOY STEEL

Material : Diamond + Metal Powder

Usage : marble

Color : Customize

Shape : Disc

Feature : High Efficiency,Durable

Advantage : Fast Cutting Speed

Package : Carton Box

Technology : Hot Sintered

Diameter : For 350mm~3500mm blade

Business type : Manufacturer

Contact Now

Diamond saw blade for splitting and edge cutting

Product features

1 Good sharpness,high cutting efficiency and long life.
2 Refine splitting edge quality and good cutting performance.
3 Suitable for all classes marble splitting.

Diameter(mm)	Steel core thickness(mm)	Segment size(mm)	No.	Segment shape	Application
400	2.6	40×3.8/3.4×15(20)	28	M,T,R shape	Granite splitting
450	3.0	40×4.2/3.8×15(20)	32	M,T,R shape	Granite splitting
500	3.0	40×4.2/3.8×15(20)	36	M,T,R shape	Granite splitting
550	3.6	40×5.0/4.4×15(20)	40	M,T,R shape	Granite splitting
600	3.6	40×5.0/4.4×15(20)	42	M,T,R shape	Granite splitting
650	4.0	40×5.4/4.8×15(20)	46	M,T,R shape	Granite splitting
700	4.0	40×5.4/4.8×15(20)	50	M,T,R shape	Granite splitting
750	4.0	40×5.4/4.8×15(20)	54	M,T,R shape	Granite splitting
800	4.5	40×6.0/5.4×15(20)	57	M,T,R shape	Granite splitting
850	4.5	40×6.0/5.4×15(20)	58	M,T,R shape	Granite splitting

Linxing stone splitting blade size

Diamond saw blade for slab&tile edge cutting

Product features:

1.High effective, environmental friendly, easy operation, long lifespan and no edge broken.
2.Hot press,cold press technology, silent core segment to prove high quality cutting result.
3.Diamond/steel power raw material.
4.High formula Key /U/Fishhook slot segment.
5.Multi hole design by customer's requirements.
6.Silent and non-silent blades are available for choice.

Diameter(Inch)	Diameter(mm)	Teeth No.	Segment Width(mm)	Segment Height(mm)
12″	300	21	3	10/12/15/20/25
14″	350	24	3.2	10/12/15/20/25
16″	400	28	3.4	10/12/15/20/25
18″	450	32	3.8	10/12/15/20/25
20″	500	36	4.2	10/12/15/20/25
24″	600	42	4.6	10/12/15/20/25

Edge cutting saw blade size

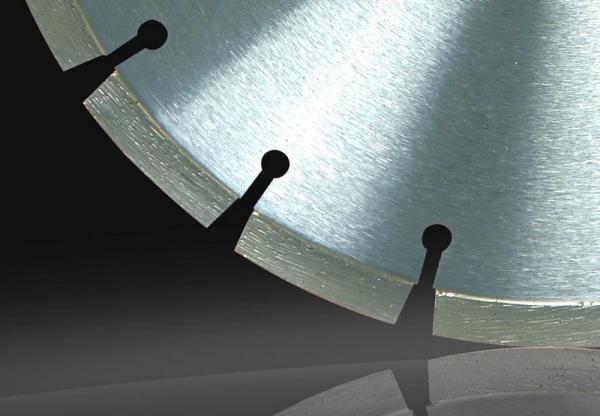

Long Life Diamond Saw Blade to Cut Granite slab and edge cutting, 250mm to 800mm Images
