Diamond Spring Wire rope for marble quarrying and exploiting

Product Categories
QUANZHOU RUIDA INDUSTRIAL AND TRADE CO.,LTD
Contact Now

Diamond Spring Wire rope for marble quarrying and exploiting

Model Number : 11mm

Certification : ISO900,SG

Place of Origin : CHINA

MOQ : 20m

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000m per monthly

Delivery Time : 5-8 Days

Packaging Details : Transport Package: Carton

Application : Marble, Sandstone,limestone

Type : Sintered

Size : 11.5mm, 11.0mm, 10.5mm

Beads Type : Sintered, Vacum, Electroplated

Coating Type : Spring, Rubber+Spring, Plastic

Beads Number : 28 PCS Per Meter

Contact Now

11.5mm sintered diamond wire saw beads for marble block sawing
Diamond wire saw beads for marble block profiling&dressing (Specifications Details)
11.5mm,.
Sintered.
Spring coated.
28 beads per meter,
8.0mm outer diameter body, 5.2mm inside core diameter .
7.8mm outer diameter body, 5.2mm inside core diameter .

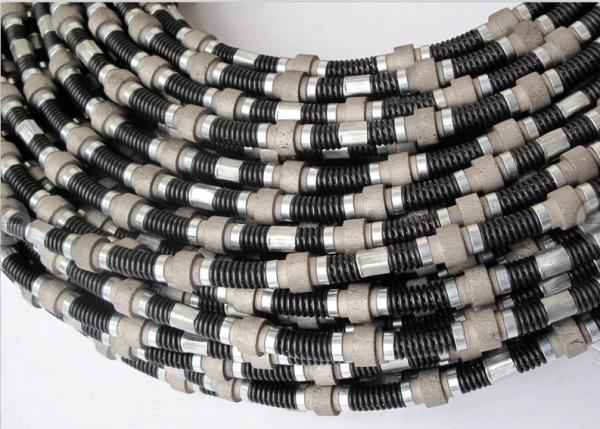

Diamond Spring Wire rope for marble quarrying and exploiting

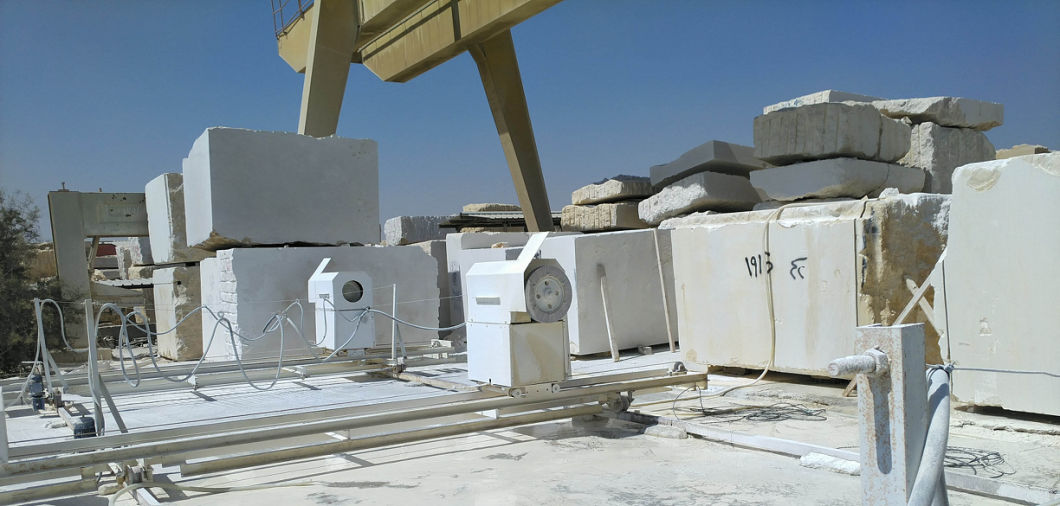

(Our wire in Egypt Cairo marble factory)

Test reports of diamond wire saw
Date Egypt marble name Number of cleans L H Square meter
10-Feb Bronze 1 1.9 1.7 3.23
Bronze 1 2.8 1.1 3.08
11-Feb Galala 2 2.4 1.2 5.76
Galala 1 2.8 1.4 3.92
Galala 1 2.95 1.55 4.57
Galala 1 1.6 1.55 2.48
12-Feb Bronze 1 3.05 1.85 5.64
Galala 1 2.4 1.9 4.56
Galala 1 2.8 1.4 3.92
Galala 1 2.8 1.9 5.32
Bronze 1 1.9 1.7 3.23
Bronze 1 2.95 1.7 5.01
13-Feb Galala 2 2.6 1.2 6.24
Galala 1 2.8 1.9 5.32
Bronze 1 3 1.9 5.7
14-Feb Bronze 1 3 1.9 5.7
Bronze 1 3 1.75 5.25
Milli bllac 2 2.6 2.08 10.82
Bronze 1 2.5 1.75 4.55
15-Feb Milli bllac 1 2.6 1.7 4.42
Bronze 1 2.5 0.6 1.5
17-Feb Sunny 2 3 1.9 11.4
Bronze 1 1.9 0.5 0.95
Bronze 1 1.95 0.5 0.98
Bronze 1 2.95 1.95 11.51
18-Feb Galala 1 3 0.7 2.1
Bronze 1 2.4 1.2 2.88
Bronze 1 2.7 1.7 4.59
Bronze 1 2.95 1.8 5.31
19-Feb Galala 2 3 1.9 11.4
Bronze 2 3 1.65 9.9
20-Feb Bronze 1 2.6 0.7 1.82
Galala 2 3.05 0.9 5.49
Galala 2 2.5 1.05 5.25
21-Feb Bronze 1 2.35 1.7 3.99
Galala 1 1.95 0.9 1.76
22-Feb Sunny 2 1.65 1 3.3
Sunny 2 2.95 1.65 9.74
24-Feb Bronze 2 2.2 1.65 7.26
Total 51PCS 199.94
20 meters, and wire still not full finish

Specifications
Diamond wire saw for granite quarrying

Specification Reinforcement Beads number Cutting material Line speed Cutting speed Life
Φ11.5mm Φ11.0mm Rubber Rubber +Spring 40/meter Hard granite 18-22 m/s 2-4 m2/h 7-9m2/m
Middle hard granite 22-25m/s 4-8 m2/h 8-15m2/m
Soft granite 25-30m/s 8-12m2/h 16-22m2/m
Φ11.5mm Φ11.0mm Rubber Rubber +Spring 40/meter Hard Sandstone 32-36m/s 5-10m2/h 10-20m2/m
Soft Sandstone 28-32m/s 1-5m2/h 15-30m2/m
Other sizes are also available

Diamond wire saw for marble quarrying

Specification Reinforcement Beads number Cutting material Line speed Cutting speed Life
Φ11.5mm Φ11.0mm Φ10.5mm Rubber 40/meter 37/meter 33/meter Hard marble 20-30 m/s 4-9 m2/h 15-25m2/m
Middle hard marble 20-35m/s 8-15 m2/h 15-35m2/m
Soft marble 25-35m/s 10-20m2/h 20-50m2/m
Φ11.0mm Φ10.5mm Spring+Plastic 30/meter 28/meter Hard marble 20-30m/s 4-9m2/h 15-25m2/m
Middle hard marble 20-35m/s 8-15 m2/h 15-35m2/m
Soft marble 25-35m/s
