Quarry stone mining machine, Sandstone Quarry Block Cutting Machine

Model Number : QZSS-1400

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100 set per month

Delivery Time : 15 working days

Packaging Details : Naked package

Model size : QZSS-1400

Diameter Of Vertical Blade : 1330 mm

Thickness Of Blade : 11.5mm

Power Of Vertical Driving Motor : 75kw

Cross Power : 131kw

Moving Speed : 10-45 M/Min

Automation : Semi-automatic

Control : Artificial

Cutting Thickness (Max) : 520mm

Honrizaontal Saw Blade : 2 PCS

Power Of Rail Motor : 5.5 Kw

Weight : 6000kgs

Core Components : Motor, Bearing, Gear, Pump

Power Of Horizontal Driving Motor : 45 Kw

Contact Now

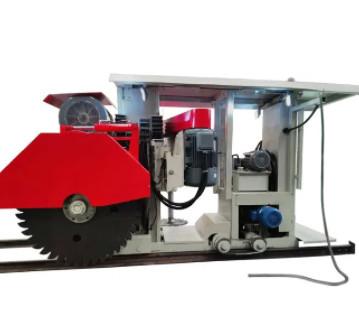

Sandstone Quarry Block Cutting Machine

Samdstone Quarry Block Cutting machcine QZSS-1400 Machinery is a cutting machine designed forquarry stones of low density. Compatible with saws both on the vertical and horizontal ways, it is able to work simultaneouisly at two orientations and suitable for mining sandstone, limestone and laterite in dry condition by cutting them directly into house-brick size blocks for building. Moreover, it's easy to find it of high producing capablity with the genaral velocity at 10-45 meters per minutes.

Main Features:

1) The longitudinal cutting relies on the large main column vertical guide rail, the structure of which is simple and strong, straight up and down runs stably.

2) Simple interface, easy to operate. A worker is able to employ it at best after having a try of few hours.

3) Crosscutting with the thick and big swing arm structure, the cutting is stable and fast.

4) Powerful motors with 93% efficiency, tall output and low consumption.

Quarry stone mining machine, Sandstone Quarry Block Cutting Machine

Advantages:

* High Efficiency * Labor Saving * Economical & Practical

Configurations:

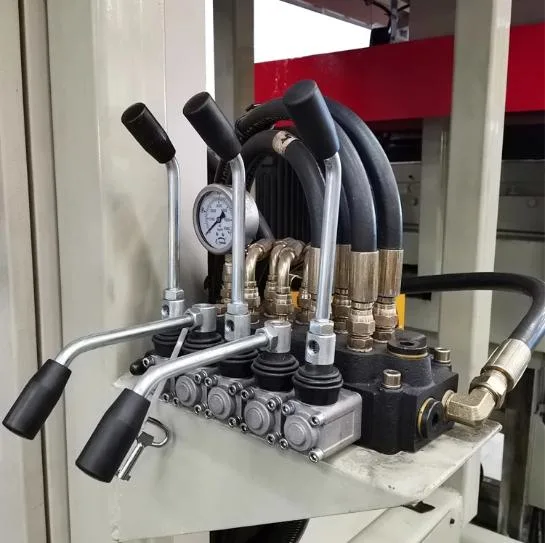

	Control Companent Name: Joystick Quantity: 5 pcs It's simple and easy to control the machine up/down, the spindle up/down, left/right, the blade cover open/close by manipulating joystick.

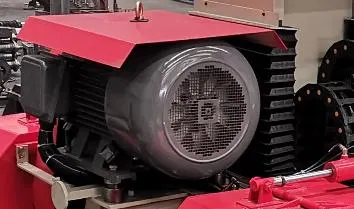

Main Motor Name: Three-phase asymchronous motor Brand: XDDJ Efficiency: 93.1% Original: China Domestic famous engines, strong driving force, good efficiency, high economic benefits.

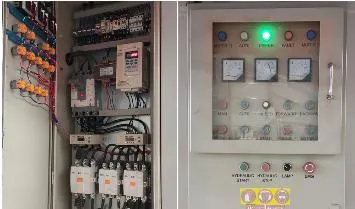

	Power Connection & Operation Panel Brand: Siemens, Schneider, SANCH Original: China Quality certificated by CE

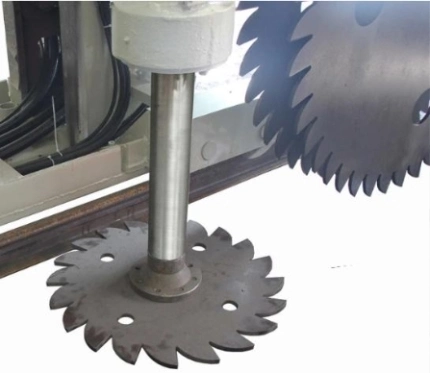

Blades Blades are made of Q460c manganese steel(difficult eformation)+heat treatment, HR up to 52. The cutter heads are made of cemented carbide, which is hard, wear-resisting, heat-resisting and corrosion resisting.

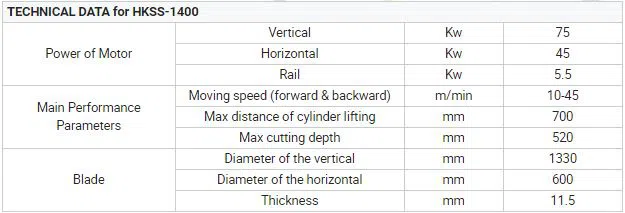

Basic Information:

Model NO.	QZSS-1400	Automation	Semi-automatic
Cutting Ability	High Speed	Control	Artificial
Certification	CE	Diameter Of Vertical Blade	1330 mm
Thickness Of Blade	11.5 mm	Cutting Thickness (Max)	520mm
Vertical Saw Blade	4 PCS	Honrizaontal Saw Blade	2 PCS
Power Of Vertical Driving Motor	75 Kw	Power Of Rail Motor	5.5 Kw
Cross Power	131kw	Weight	6000kgs
Moving Speed	10-45 M/Min	Core Components	Motor, Bearing, Gear, Pump
Warranty Of Core Components	1 Year	Power Of Horizontal Driving Motor	45 Kw
Use	Stone Brick/Blocks Directly Forming When Qarrying	Useful Period	Long Service Life
Origin	China	Transport Package	Plastic Film
Specification	483520502585mm

Quarry stone mining machine, Sandstone Quarry Block Cutting Machine

Quarry stone mining machine, Sandstone Quarry Block Cutting Machine Images
