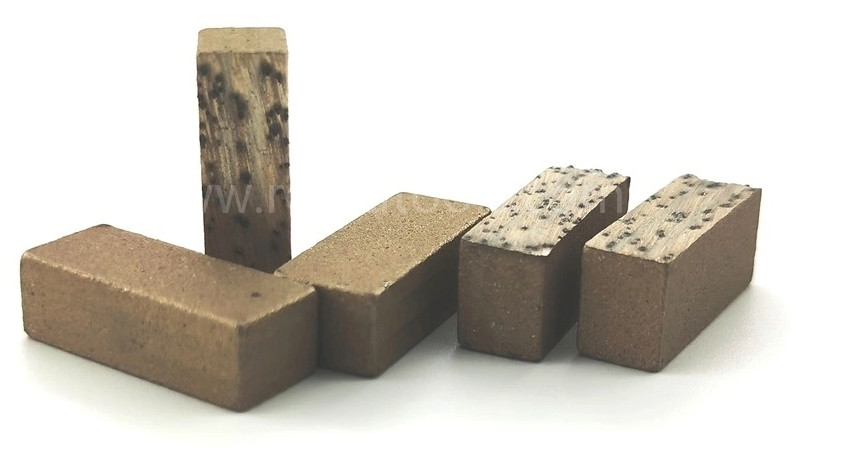

900-3500mm Diamond Tools Blade Segments for Granite Marble Cutting

Model Number : 2200mm

Certification : CE

Place of Origin : CHINA

MOQ : 100PCS

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100000PCS PER MONTH

Delivery Time : 7-15 working days

Packaging Details : Carton or wooden package

Size : 1600mm

Type : diamond segment

Application : Granite and marble block cutting

Product name : Diamond Saw Blade

Finishing : Diamond

Material : Diamond + Metal Powder

Color : Customize

Feature : High Efficiency,no-chipping.,Durable,Sharpness

Advantage : Fast Cutting Speed,High Efficiency,Imporved Efficiency

Package : Carton Box

Technology : Hot Sintered

Diameter : For 350mm~3500mm blade

Business type : Manufacturer

Contact Now

Product Description

Characteristics of Products:

1. The blade has good sharpness and high efficiency at the process of cutting, meanwhile, it has a long lifespan.
2. Good cutting result: smooth cutting, flat surface and even size.
3. Stable cutting, narrow cutting gap, stone waste reduction.

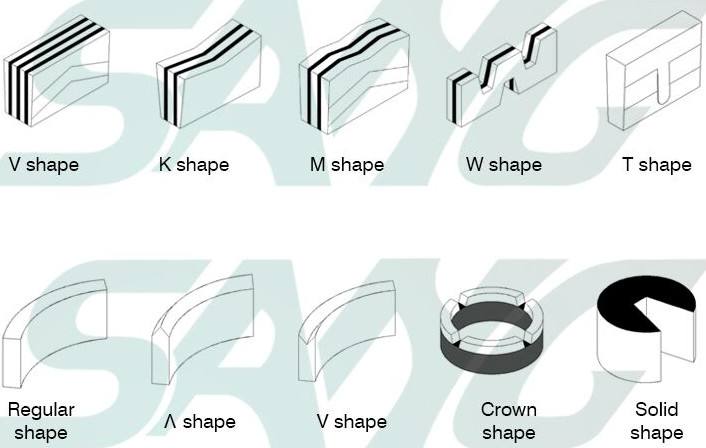

4. M-shape segment is easy for diamond opening.

Product Name	Diameter (mm)	Steel Core Thickness(mm)	Segment Dimension(mm)	Segment Number	Application
Edge Cutting Segment For Stone	300	2.2	40x3.2x10(15,20)	21	Granite, Marble, Basalt, Volcanic, Lava Stone, Andesite, Travertine, Limestone, Sandstone, Quartz, Artificial Stone, Microcrystal Stone
	350	2.2	40x3.2x10(15,20)	24
	400	2.6	40x3.6x10(15,20)	28
	450	3.0	40x4.0x10(15,20)	32
Splitting Segment For Stone	500	3.0	40x4.0x10(15,20)	36
	550	3.6	40x4.6x10(15,20)	40
	600	3.6	40x4.6x10(15,20)	42
	650	4.0	40x5.0x10(15,20)	46
	700	4.0	40x5.0x10(15,20)	50
	750	4.0	40x5.0x10(15,20)	54
	800	4.5	40x5.5x10(15,20)	57
	850	4.5	40x5.5x10(15,20)	58
Block Cutting Segment For Stone	900	5.0	24x7.0/6.2x13(15,20)	64
	1000	5.0	24x7.0/6.2x13(15,20)	70
	1200	5.5	24x7.4/6.6x13(15,20)	80
	1400	6.0	24x8.0/7.2x13(15,20)	92
	1400	6.5	24x8.4/7.6x13(15,20)	92
	1600	7.2	24x9.2/8.4x13(15,20)	108
	1800	7.5	24x10/9.2x13(15,20)	120
	2000	8.0	24x11/10x15(20)	128
	2200	9.0	24x11/10x15(20)	132
	2500	9.0	24x12/11x20(30)	140
	2700	9.0	24x12/11x20(30)	140
	3000	9.3	24x13/12x20(30)	160
	3500	9.5	24x13.5/12.5x20(30)	180
Other specifications are available upon request.
Silent and non-silent blades are available for choice.
